Bookshelf for my Fromsoftware books 📚🔧

📌 Overview

I bought about 1000 yuan (212 aud) worth of Fromsoftware Books, and i need a bookshelf for it. At the start i was browsing online for cool bookshelf, but all of them are either too complicated for my old, not so high quality seconded handed ender 3 pro, too small or i just dont like the style. So i just ended designing a really simple book shelf that is also big enough to fit all my books. The bookshelf is split into two halves, with a simple joint mechanism to connect the two.

Through this small project, I developed critical thinking through measurements and designing, I also had an introduction on tolerance and joint mechanism.

Outcome: A bookshelf that is big enough for my books!

Sketch Sketch

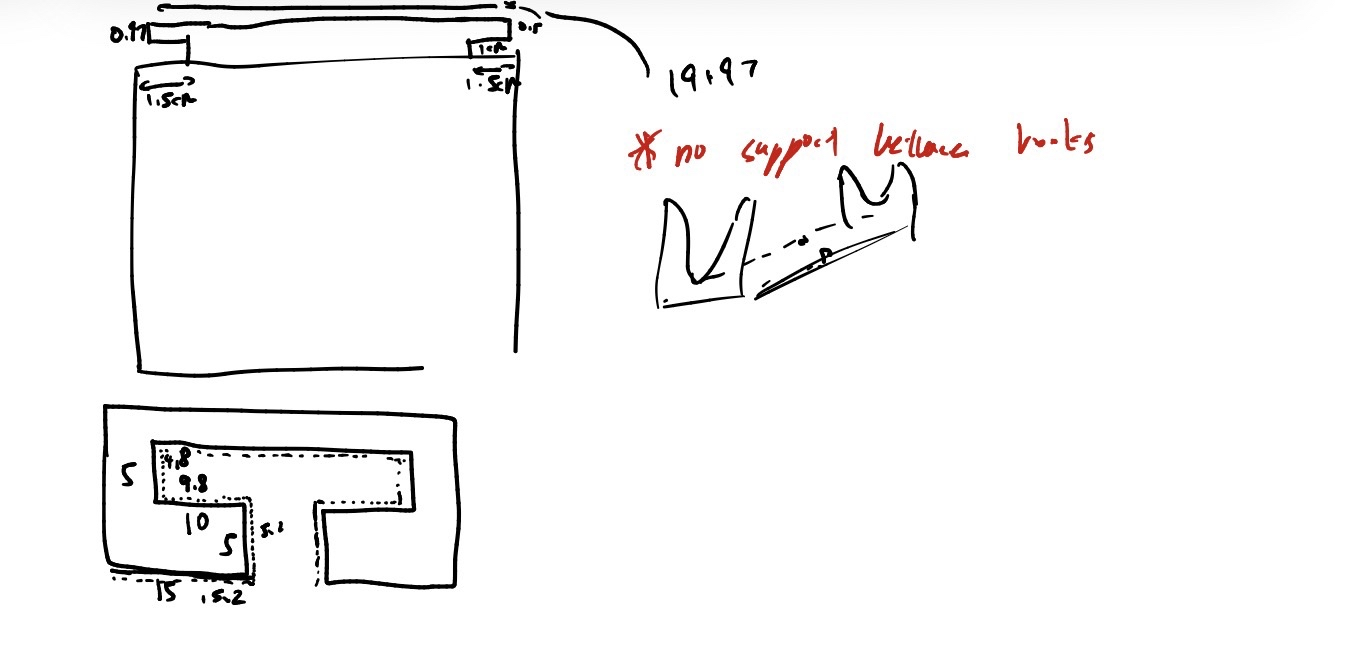

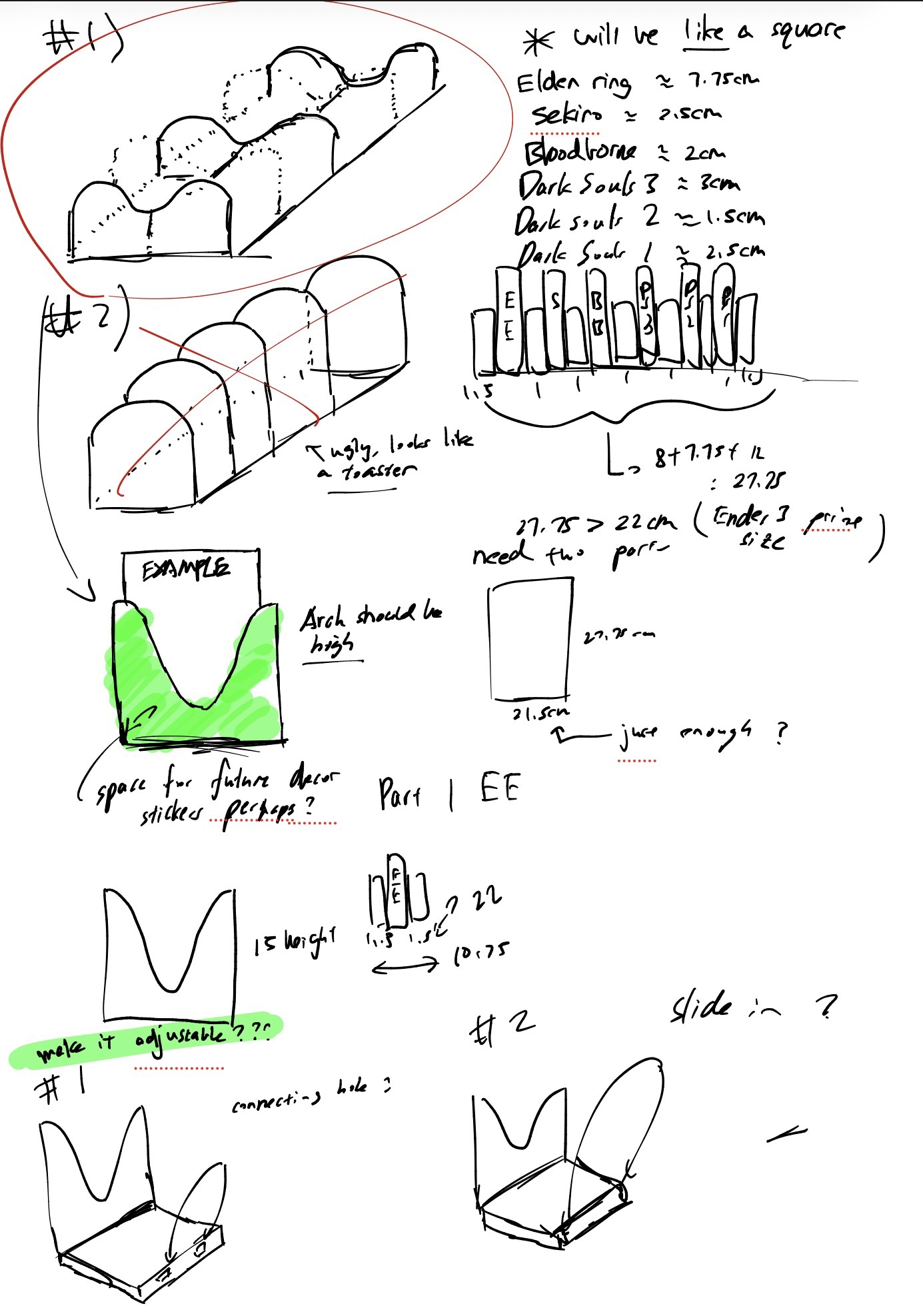

rough brainstorm of the bookshelf design.

💡 Joint Mechanism

I took inspiration of this random bookshelf design on makerworld, it uses this joint mechanism (i dont know the name of this)

Sketch

This is the one im talking about.

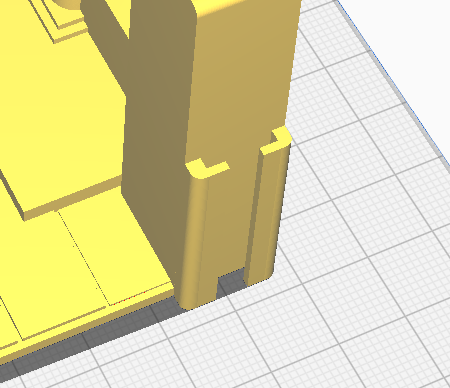

I adapted this idea into my bookshelf and it was a lot more simple.

Sketch

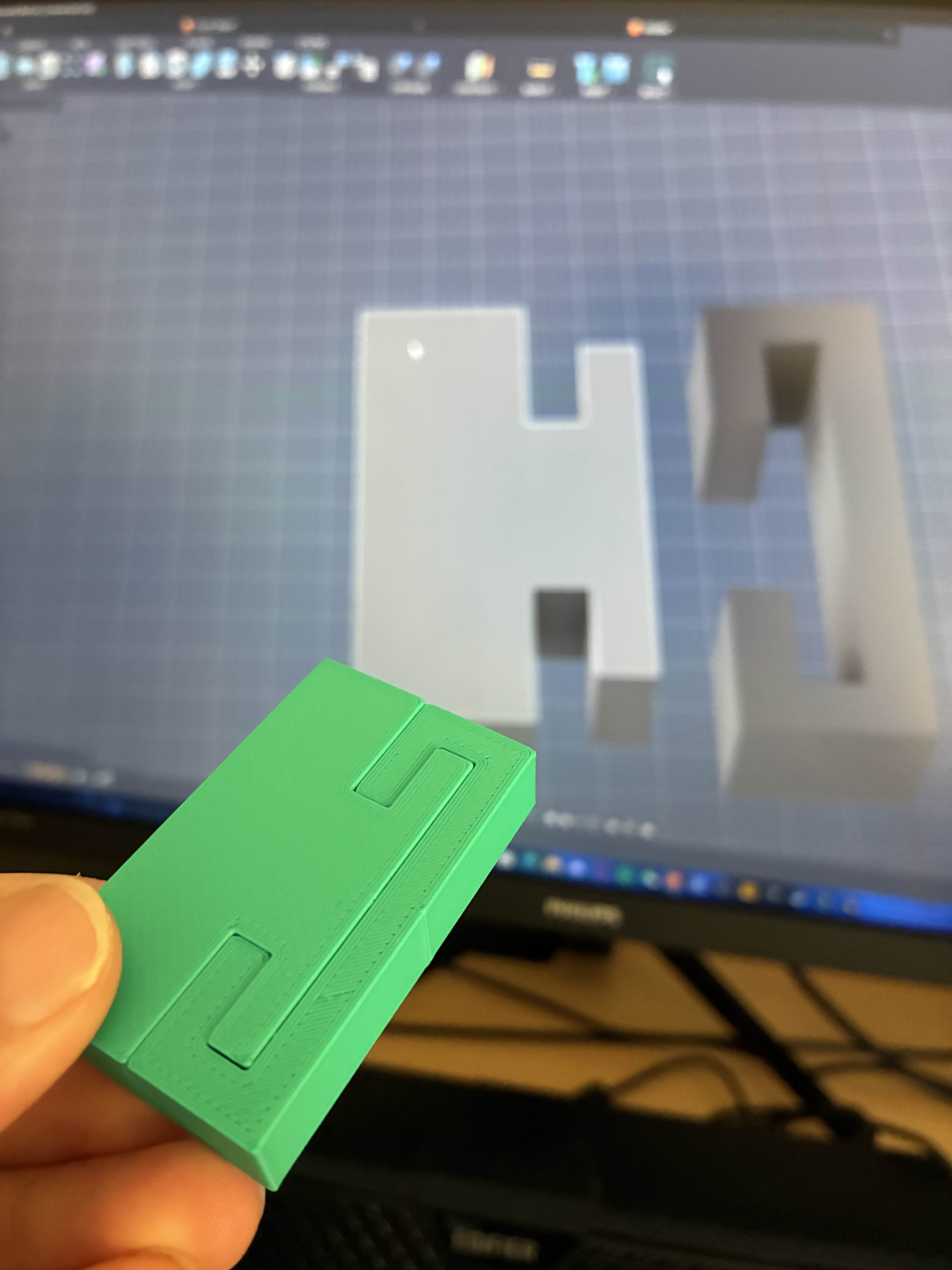

Making sure it works first so I did a test print, and it worked well.



In addition…

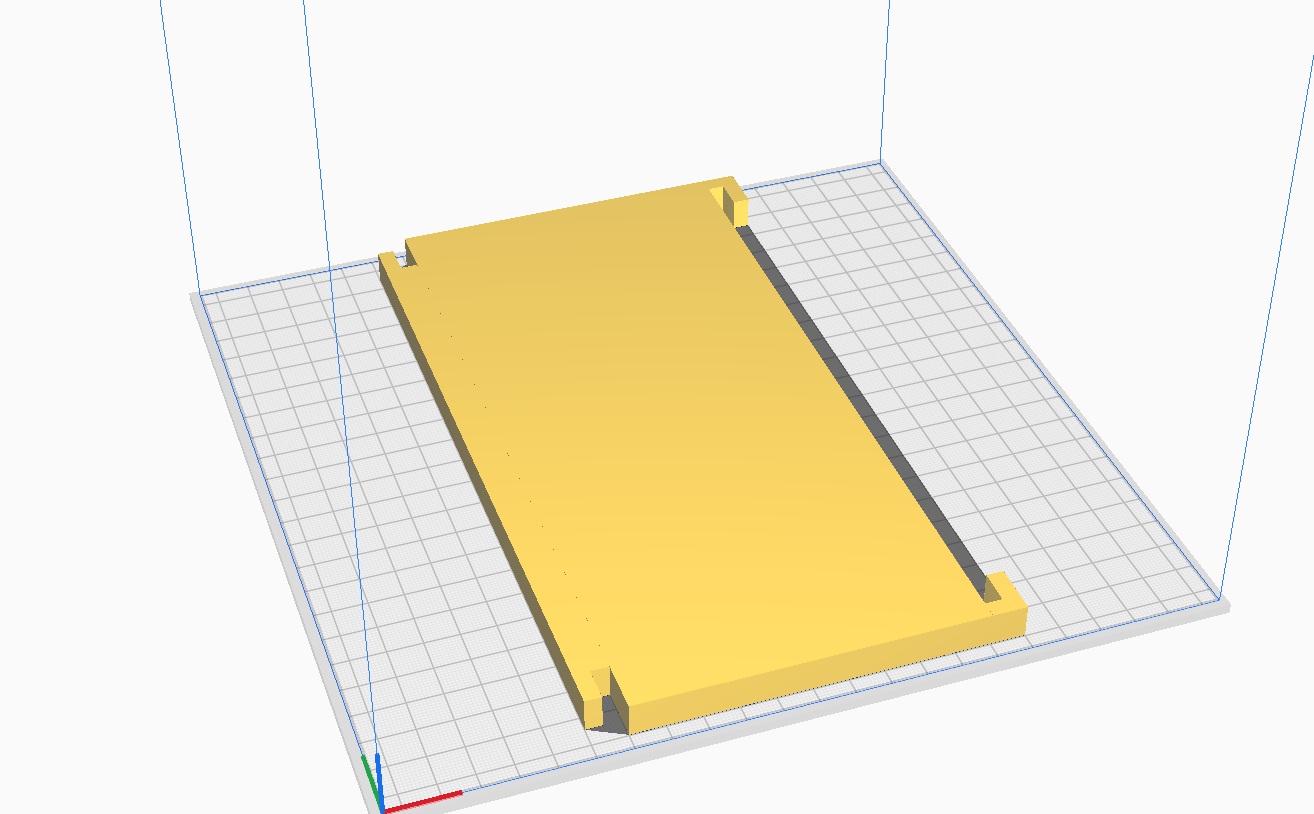

Sketch

Now you can infinitely extend the bookshelf yea!!.


FINAL

Sketch

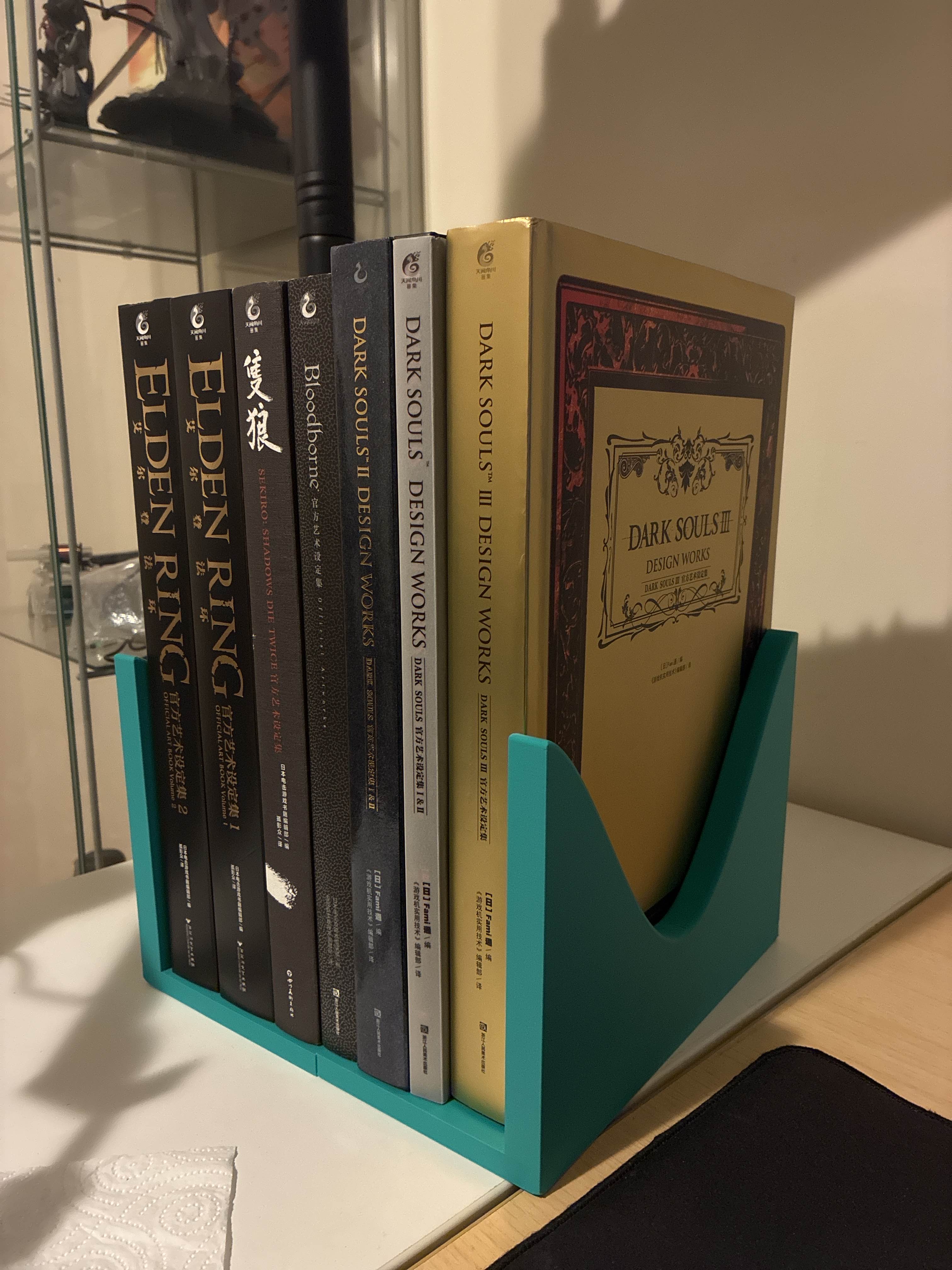

Looked just as expected, the joint still works, after connection it remains stable.
