#📝 I learned…
Advance Contraints
- using Contraints, you can have create restrictions on point and lines, point and points and lines and lines. You can make restrictions like length, radius, angle etc.
- You can also make contraints function of each other, say that you already have a contraint d1, your second contraint after making it, for the dimension click the first dimension, the second contraint will become a function of d1.
Chamfer Tool
- Essentially another style of fillet, you should normally always apply chamfer before fillet when using it.
- For fillet and chamfer, you can press + and X on the side to add multiple of it.
Emboss from existing sketch
- unlike the previous day where you emboss from text, you can make any geometric shape first and then emboss that shape onto your 3d object.
- just make sure to ctrl if multiple face are used and untick tangent chain.
🛠️ What I designed

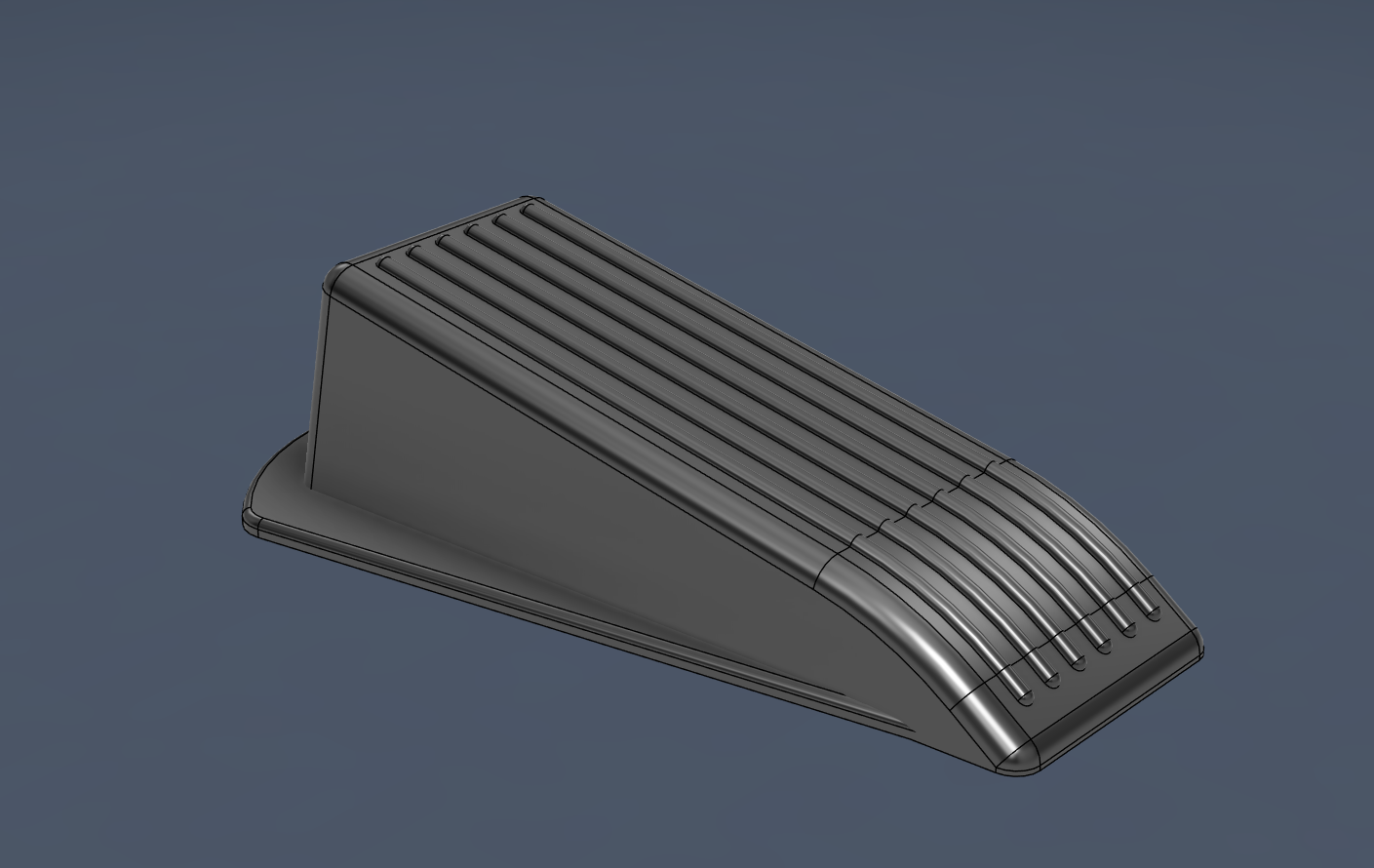

A doorstop
