#📝 I learned…

Loft

• Creates transitional shapen between two or more sketches. Can be used when shapes are not entirely symmetrical around the axis.

Guide rails

• Can be used to assist loft. GRs can be creatued using lines, fit point spline etc.



Intersection between sketch and plane

• Can be used to assist the making of guide rails.
• allow easier sketch mirroring



Mirror sketch

• It is in the name, it mirrors your sketches, just make sure you are picking the right axis. In this case it’s the Z axis.

Thread

• It’s in the name, nothing much to say.



🛠️ What I designed

A simple paperclip.

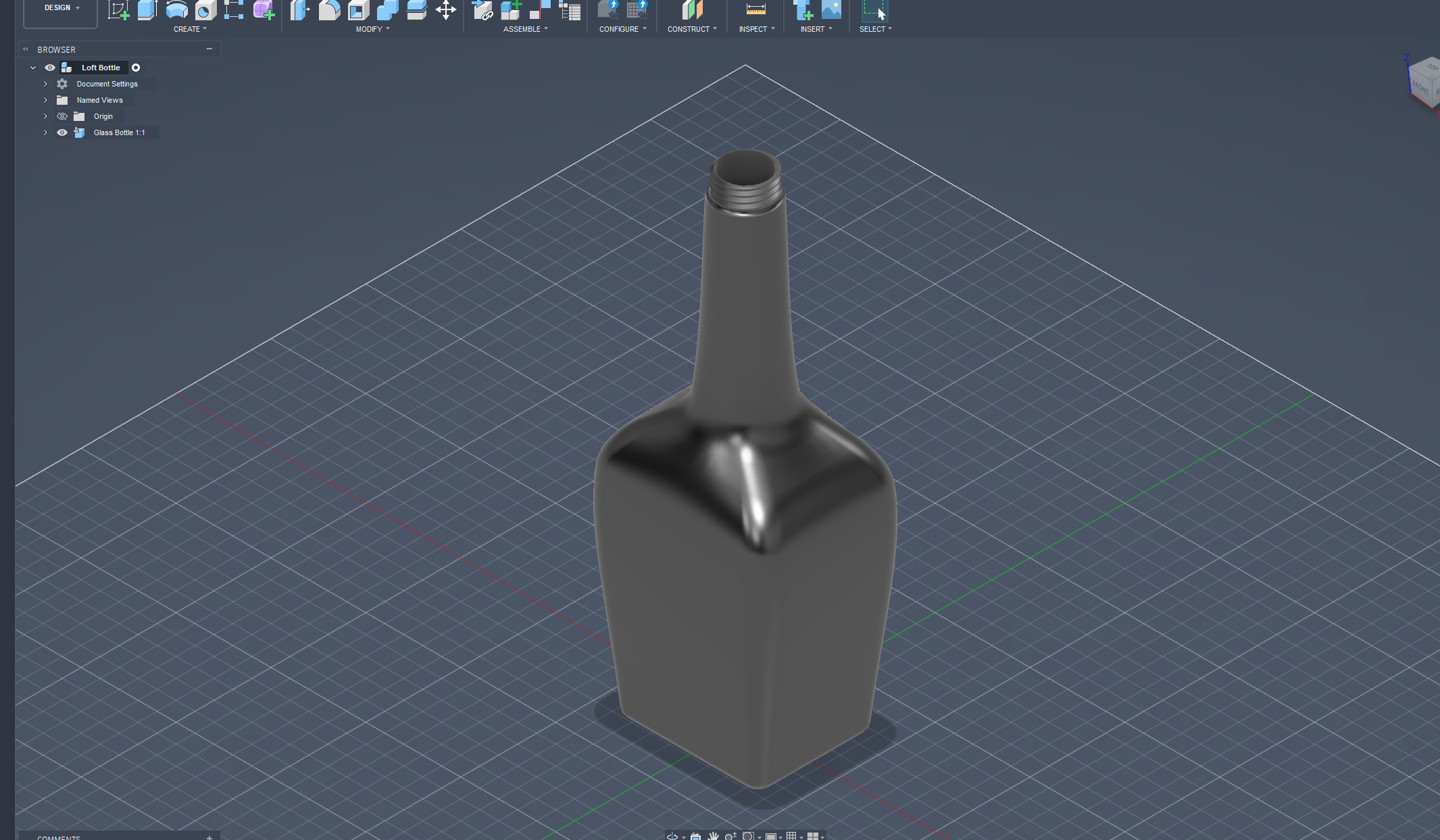

Final product of the loft bottle.
