f360-journey

#📝 I learned…

Insert Reference Image

-Enrich the ability to reverse engineer CAD designs.

-Making easier to match real life dimensions.

Create a Fit Point Spline

-Enables the ability to sketch line with curvatures.

The Revolve Feature

-Converting a 2D sketch into 3D shape by integrating around the x y z axis.

Horizontal/Vertical Constraints

-Allows smooth connection of lines.

Inserting Appearance of Real Life Material

-Gains the ability to to see what the design looks like in real life.

🛠️ What I Built

A simple soda bottle, used to shell feature as well to make the inside hollow.

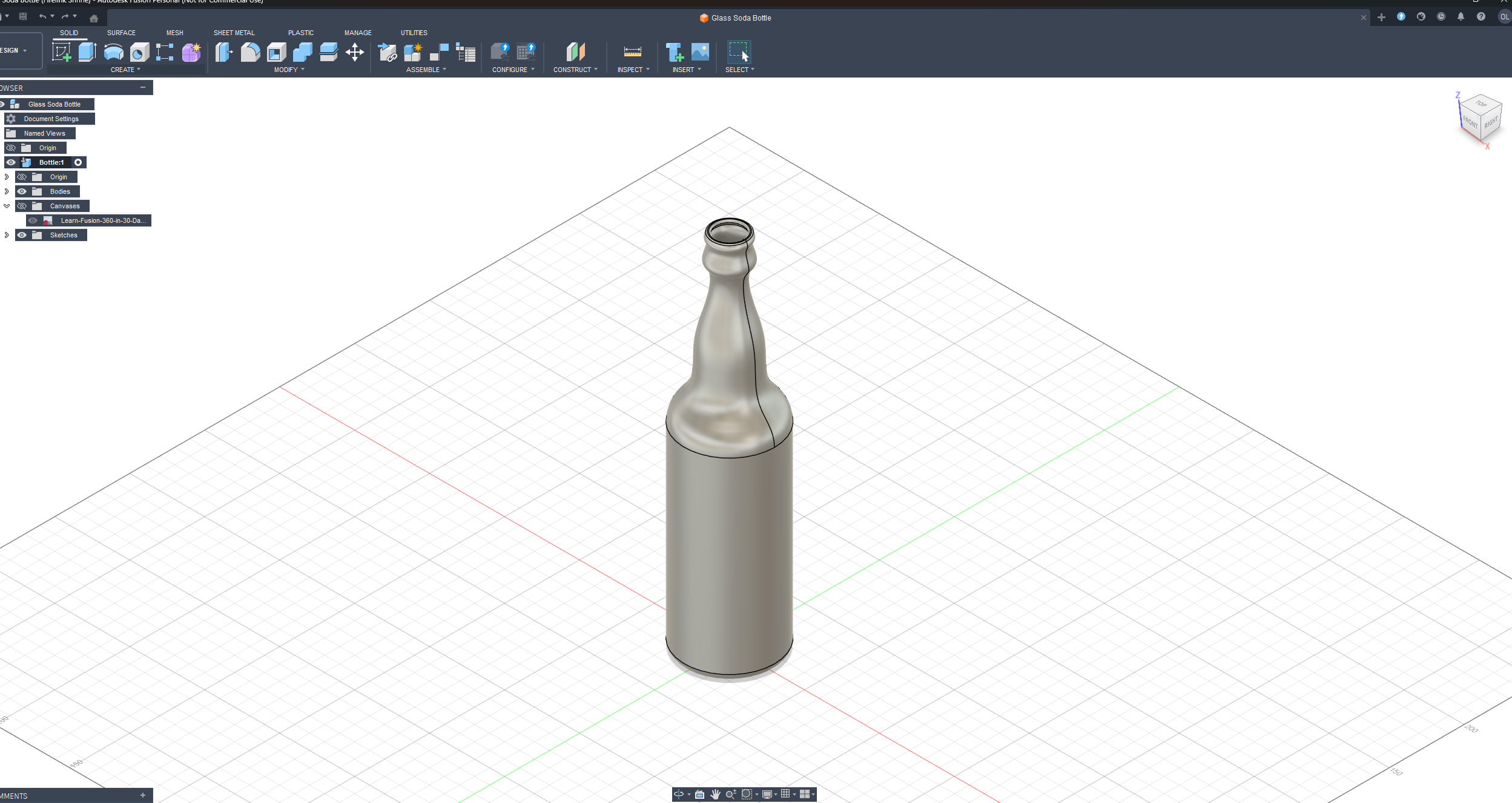

FInal product of the soda bottle
